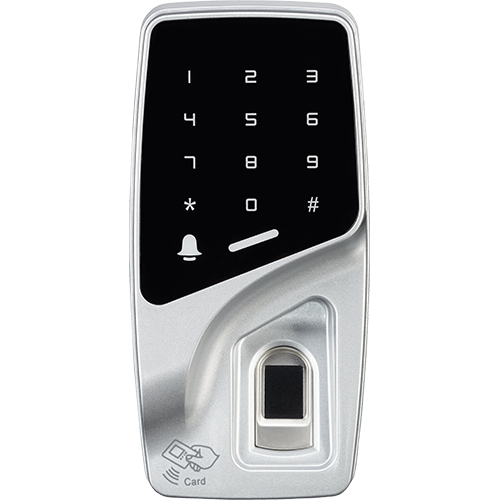

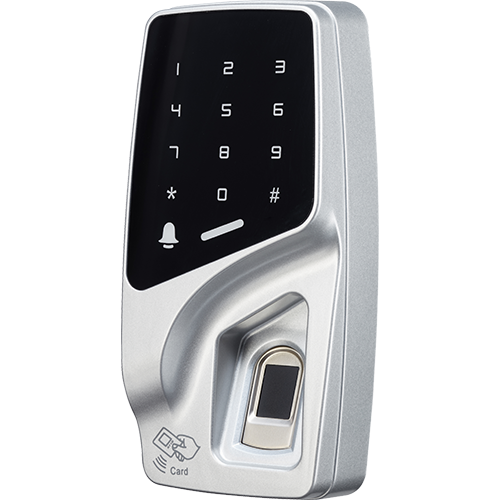

TFS16

IP64 Waterproof Metal Housing Fingerprint Access Control System
Description Specifications Support



Product Advantage:
TIMMY TFS16 is a simple standalone fingerprint access control terminal, combined with other access control terminal, easy replace and install for middle and small enterprise.

Product Features:
1. Both use as fingerprint reader and standalone fingerprint access control.
2.Multiple identification: fingerprint,password and card together.
3.500 dip hidden fingerprint sensor for dry fingerprint and strong sunshine.
4.Wiegand out to combine with access controller.
5.Easy operation for register and delete with software management.
6.IP64 Waterproof Metal Housing Fingerprint Access Control System



Model TFS16
Working Standalone
Power Supply DC 12V
Identification Style Fingerprint/card/password
Identification Speed <1 sec
FAR <0.01
FRR <0.0001
Fingerprint Capacity 500
Card Capacity 2000
Humidity 20%-60%
Temperature 0℃-45℃
Wiegand Out Wiegand 26&34
Input Door Sensor, exit button
Output Electric Lock
Alarm Defend, Unlock
Voice Boom, Dual LED




Hardware manual(0.5M)
Data Sheet(1.4M)
